S1TT6 – Technical Manual

Version: 1.0
Revision Date: 19/10/2025

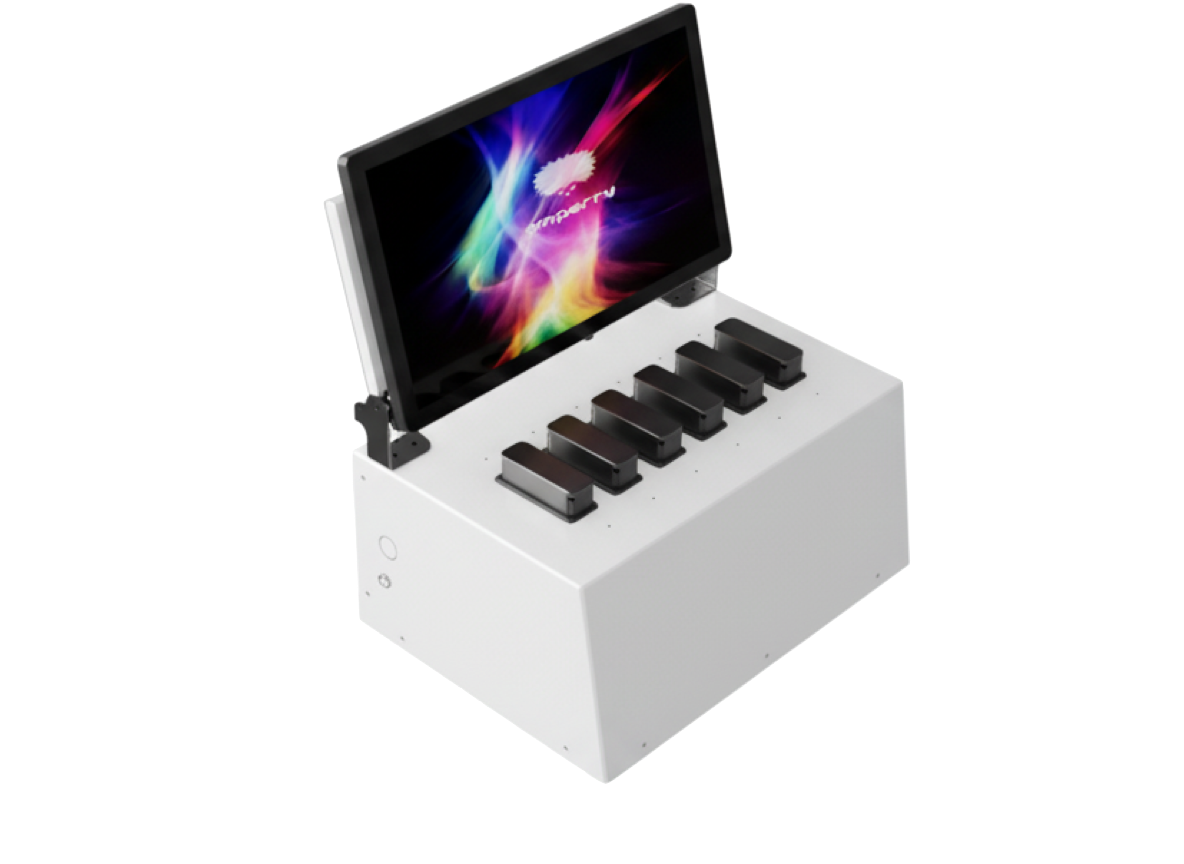

S1TT6 Station

1. Introduction​

The S1TT6 Station is a compact, cost-effective smart power bank rental system designed for smaller locations and businesses with moderate demand.

It features:

  • A 15.6-inch touchscreen
  • 6 power bank slots in a single module
  • Automated locking/unlocking
  • Cloud connectivity for monitoring and updates

2. Key Features​

  • Display: 15.6-inch touchscreen
  • Slots: 6 (single integrated module)
  • Smart Locking System: Solenoid-based
  • Connectivity: Wi-Fi & 4G/LTE
  • Upgradable Firmware
  • Power Supply: 220V industrial-grade adapters
  • Cloud Management

3. Typical Applications​

  • Retail stores, cafés, small offices
  • Events and pop-up installations
  • Additional service for businesses

4. Technical Specifications​

Physical​

  • Dimensions: XX×YY cm
  • Weight: ZZ kg
  • Material: Plastic structure

Power Bank Management​

  • Slots: 6 (1 module of 6)
  • Lock System: Solenoid + spring release
  • Control Board: Tomorrow Tech s.r.l.
  • Microcontroller: STM32 @ 48 MHz

User Interface​

  • Interactive App: Rental & Return

Connectivity​

  • Embedded Computer: Raspberry Pi
  • Data: Wi-Fi & USB 4G dongle
  • Cloud sync: Remote management

Power​

  • Input Voltage: 220V
  • Consumption: 120 Wh
  • Certified Industrial Adapters

Operating Environment​

  • Temperature: 0°C to 50°C
  • Humidity: Up to 90% (non-condensing)
  • MTBF: 500,000 hours

5. Operating Logic​

For detailed information about the rental and return processes, please refer to the dedicated Integration section which covers all operational workflows, payment processing, and system integration requirements.

6. Compliance & Certifications​

  • EMC: Conducted and radiated emissions
  • Product Safety: CE Certified
  • Components: Certified display, adapters, Raspberry Pi
  • Amperry Control Board: Requires CE certification
